Volatility Forecasting¶
This setup code is required to run in an IPython notebook
[1]:
import matplotlib.pyplot as plt
import seaborn as sns
sns.set_style("darkgrid")
plt.rc("figure", figsize=(16, 6))
plt.rc("savefig", dpi=90)
plt.rc("font", family="sans-serif")
plt.rc("font", size=14)
Data¶
These examples make use of daily S&P 500 data that are distributed with the package and can be loaded from arch.data.sp500.
[2]:
import sys
import arch.data.sp500
import numpy as np
import pandas as pd
from arch import arch_model
data = arch.data.sp500.load()
market = data["Adj Close"]
returns = 100 * market.pct_change().dropna()
Basic Forecasting¶
Forecasts can be generated for standard GARCH(p,q) processes using any of the three forecast generation methods:
Analytical
Simulation-based
Bootstrap-based
Be default forecasts will only be produced for the final observation in the sample so that they are out-of-sample.
Forecasts start with specifying the model and estimating parameters.
[3]:
am = arch_model(returns, vol="garch", p=1, o=0, q=1, dist="normal")
res = am.fit(update_freq=5)
Iteration: 5, Func. Count: 35, Neg. LLF: 6970.276118552504
Iteration: 10, Func. Count: 63, Neg. LLF: 6936.718477482207
Optimization terminated successfully (Exit mode 0)
Current function value: 6936.718476988983
Iterations: 11
Function evaluations: 68
Gradient evaluations: 11
[4]:
forecasts = res.forecast()
Forecasts are contained in an ARCHModelForecast object which has 4 attributes:
mean- The forecast meansresidual_variance- The forecast residual variances, that is \(E_t[\epsilon_{t+h}^2]\)variance- The forecast variance of the process, \(E_t[r_{t+h}^2]\). The variance will differ from the residual variance whenever the model has mean dynamics, e.g., in an AR process.simulations- An object that contains detailed information about the simulations used to generate forecasts. Only used if the forecastmethodis set to'simulation'or'bootstrap'. If using'analytical'(the default), this isNone.
The three main outputs are all returned in DataFrames with columns of the form h.# where # is the number of steps ahead. That is, h.1 corresponds to one-step ahead forecasts while h.10 corresponds to 10-steps ahead.
The default forecast only produces 1-step ahead forecasts.
[5]:
print(forecasts.mean.iloc[-3:])
print(forecasts.residual_variance.iloc[-3:])
print(forecasts.variance.iloc[-3:])
h.1
Date
2018-12-31 0.056353
h.1
Date
2018-12-31 3.59647
h.1
Date
2018-12-31 3.59647
Longer horizon forecasts can be computed by passing the parameter horizon.
[6]:
forecasts = res.forecast(horizon=5)
print(forecasts.residual_variance.iloc[-3:])
h.1 h.2 h.3 h.4 h.5
Date
2018-12-31 3.59647 3.568502 3.540887 3.513621 3.486701
Alternative Forecast Generation Schemes¶
Fixed Window Forecasting¶
Fixed-windows forecasting uses data up to a specified date to generate all forecasts after that date. This can be implemented by passing the entire data in when initializing the model and then using last_obs when calling fit. forecast() will, by default, produce forecasts after this final date.
Note last_obs follow Python sequence rules so that the actual date in last_obs is not in the sample.
[7]:
res = am.fit(last_obs="2011-1-1", update_freq=5)
forecasts = res.forecast(horizon=5)
print(forecasts.variance.dropna().head())
Iteration: 5, Func. Count: 34, Neg. LLF: 4578.713321777337
Iteration: 10, Func. Count: 63, Neg. LLF: 4555.338450774295
Optimization terminated successfully (Exit mode 0)
Current function value: 4555.285110045364
Iterations: 14
Function evaluations: 83
Gradient evaluations: 14
h.1 h.2 h.3 h.4 h.5
Date
2010-12-31 0.381757 0.390905 0.399988 0.409008 0.417964
2011-01-03 0.451724 0.460381 0.468976 0.477512 0.485987
2011-01-04 0.428416 0.437236 0.445994 0.454691 0.463326
2011-01-05 0.420554 0.429429 0.438242 0.446993 0.455683
2011-01-06 0.402483 0.411486 0.420425 0.429301 0.438115
Rolling Window Forecasting¶
Rolling window forecasts use a fixed sample length and then produce one-step from the final observation. These can be implemented using first_obs and last_obs.
[8]:
index = returns.index
start_loc = 0
end_loc = np.where(index >= "2010-1-1")[0].min()
forecasts = {}
for i in range(20):
sys.stdout.write(".")
sys.stdout.flush()
res = am.fit(first_obs=i, last_obs=i + end_loc, disp="off")
temp = res.forecast(horizon=3).variance
fcast = temp.iloc[0]
forecasts[fcast.name] = fcast
print()
print(pd.DataFrame(forecasts).T)
....................
h.1 h.2 h.3
2009-12-31 0.615314 0.621743 0.628133
2010-01-04 0.751747 0.757343 0.762905
2010-01-05 0.710453 0.716315 0.722142
2010-01-06 0.666244 0.672346 0.678411
2010-01-07 0.634424 0.640706 0.646949
2010-01-08 0.600109 0.606595 0.613040
2010-01-11 0.565514 0.572212 0.578869
2010-01-12 0.599560 0.606051 0.612501
2010-01-13 0.608309 0.614748 0.621148
2010-01-14 0.575065 0.581756 0.588406
2010-01-15 0.629890 0.636245 0.642561
2010-01-19 0.695074 0.701042 0.706974
2010-01-20 0.737154 0.742908 0.748627
2010-01-21 0.954167 0.958725 0.963255
2010-01-22 1.253453 1.256401 1.259332
2010-01-25 1.178691 1.182043 1.185374
2010-01-26 1.112205 1.115886 1.119545
2010-01-27 1.051295 1.055327 1.059335
2010-01-28 1.085678 1.089512 1.093324
2010-01-29 1.085786 1.089593 1.093378
Recursive Forecast Generation¶
Recursive is similar to rolling except that the initial observation does not change. This can be easily implemented by dropping the first_obs input.
[9]:
import numpy as np
import pandas as pd
index = returns.index
start_loc = 0
end_loc = np.where(index >= "2010-1-1")[0].min()
forecasts = {}
for i in range(20):
sys.stdout.write(".")
sys.stdout.flush()
res = am.fit(last_obs=i + end_loc, disp="off")
temp = res.forecast(horizon=3).variance
fcast = temp.iloc[0]
forecasts[fcast.name] = fcast
print()
print(pd.DataFrame(forecasts).T)
....................
h.1 h.2 h.3
2009-12-31 0.615314 0.621743 0.628133
2010-01-04 0.751723 0.757321 0.762885
2010-01-05 0.709956 0.715791 0.721591
2010-01-06 0.666057 0.672146 0.678197
2010-01-07 0.634503 0.640776 0.647011
2010-01-08 0.600417 0.606893 0.613329
2010-01-11 0.565684 0.572369 0.579014
2010-01-12 0.599963 0.606438 0.612874
2010-01-13 0.608558 0.614982 0.621366
2010-01-14 0.575020 0.581639 0.588217
2010-01-15 0.629696 0.635989 0.642244
2010-01-19 0.694735 0.700656 0.706541
2010-01-20 0.736509 0.742193 0.747842
2010-01-21 0.952751 0.957245 0.961713
2010-01-22 1.251145 1.254050 1.256936
2010-01-25 1.176864 1.180162 1.183441
2010-01-26 1.110848 1.114497 1.118124
2010-01-27 1.050102 1.054077 1.058028
2010-01-28 1.084669 1.088454 1.092216
2010-01-29 1.085003 1.088783 1.092541
Appending New Observations¶
Models do not need to be re-estimated each time a new observation arrives. append adds new observations to a model in-place, without changing any parameters, so that forecasts can be produced from the latest observation using parameters estimated previously. The type of the new data must match the type used to construct the model, and the index of new data must follow the existing index.
The next cell estimates a GARCH(1,1) using returns through the end of 2017.
[10]:
split_date = "2017-12-31"
am = arch_model(returns[:split_date], vol="garch", p=1, o=0, q=1, dist="normal")
res = am.fit(disp="off")
print(res.forecast(horizon=3, reindex=False).variance)
h.1 h.2 h.3
Date
2017-12-29 0.256011 0.267787 0.279431
Next, the returns for January 2018 are appended to the model. The model parameters are not changed, so the original results are unaffected and still produce forecasts from the last observation of 2017. fix constructs a results object that uses the extended sample and the parameters estimated previously, and so its forecasts start from the last appended observation. Passing the parameters to the model’s forecast method produces the same forecasts. Call fit after append if the
parameters should be re-estimated using the extended sample.
[11]:
new_returns = returns["2018-01-01":"2018-01-31"]
am.append(new_returns)
# Results that use the extended sample and the original parameters
fixed_res = am.fix(res.params)
print(fixed_res.forecast(horizon=3, reindex=False).variance)
# Equivalent: forecast from the model using the original parameters
print(am.forecast(res.params, horizon=3, reindex=False).variance)
h.1 h.2 h.3
Date
2018-01-31 0.486098 0.495305 0.504408
h.1 h.2 h.3
Date
2018-01-31 0.486098 0.495305 0.504408
TARCH¶
Analytical Forecasts¶
All ARCH-type models have one-step analytical forecasts. Longer horizons only have closed forms for specific models. TARCH models do not have closed-form (analytical) forecasts for horizons larger than 1, and so simulation or bootstrapping is required. Attempting to produce forecasts for horizons larger than 1 using method='analytical' results in a ValueError.
[12]:
# TARCH specification
am = arch_model(returns, vol="garch", power=2.0, p=1, o=1, q=1)
res = am.fit(update_freq=5)
forecasts = res.forecast()
print(forecasts.variance.iloc[-1])
Iteration: 5, Func. Count: 40, Neg. LLF: 6846.495604247777
Iteration: 10, Func. Count: 75, Neg. LLF: 6822.883180893361
Optimization terminated successfully (Exit mode 0)
Current function value: 6822.882823391775
Iterations: 13
Function evaluations: 93
Gradient evaluations: 13
h.1 3.010188
Name: 2018-12-31 00:00:00, dtype: float64

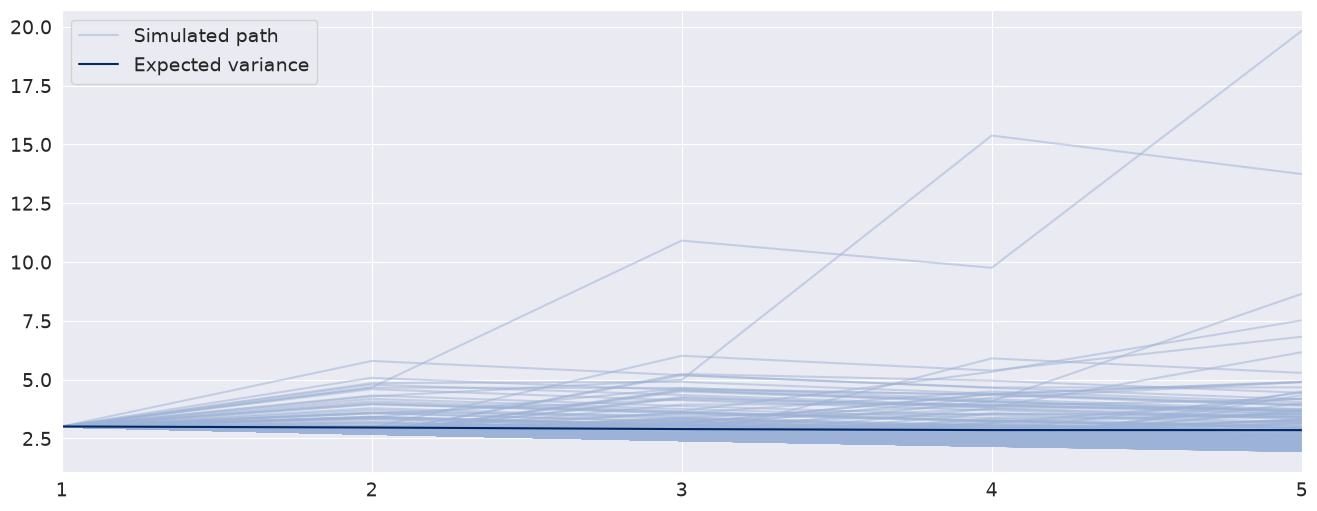

Simulation Forecasts¶

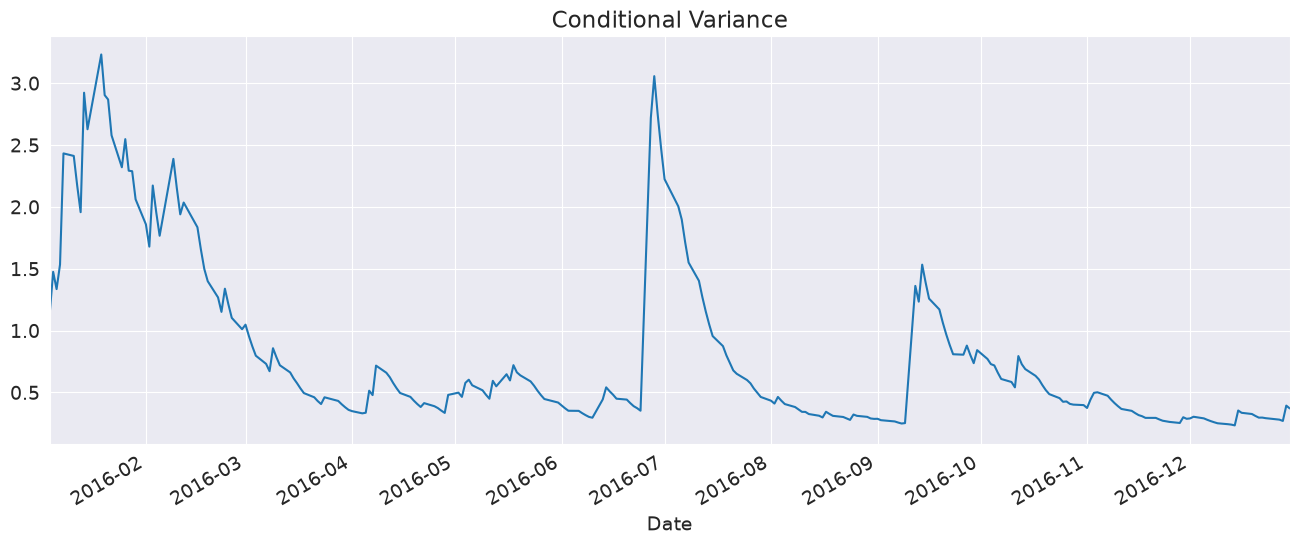

When using simulation- or bootstrap-based forecasts, an additional attribute of an ARCHModelForecast object is meaningful – simulation.
[13]:
import matplotlib.pyplot as plt
fig, ax = plt.subplots(1, 1)
var_2016 = res.conditional_volatility["2016"] ** 2.0
subplot = var_2016.plot(ax=ax, title="Conditional Variance")
subplot.set_xlim(var_2016.index[0], var_2016.index[-1])
[13]:
(np.float64(16804.0), np.float64(17165.0))
[14]:
forecasts = res.forecast(horizon=5, method="simulation")
sims = forecasts.simulations
x = np.arange(1, 6)
lines = plt.plot(x, sims.residual_variances[-1, ::5].T, color="#9cb2d6", alpha=0.5)
lines[0].set_label("Simulated path")
line = plt.plot(x, forecasts.variance.iloc[-1].values, color="#002868")
line[0].set_label("Expected variance")
plt.gca().set_xticks(x)
plt.gca().set_xlim(1, 5)
legend = plt.legend()
Bootstrap Forecasts¶

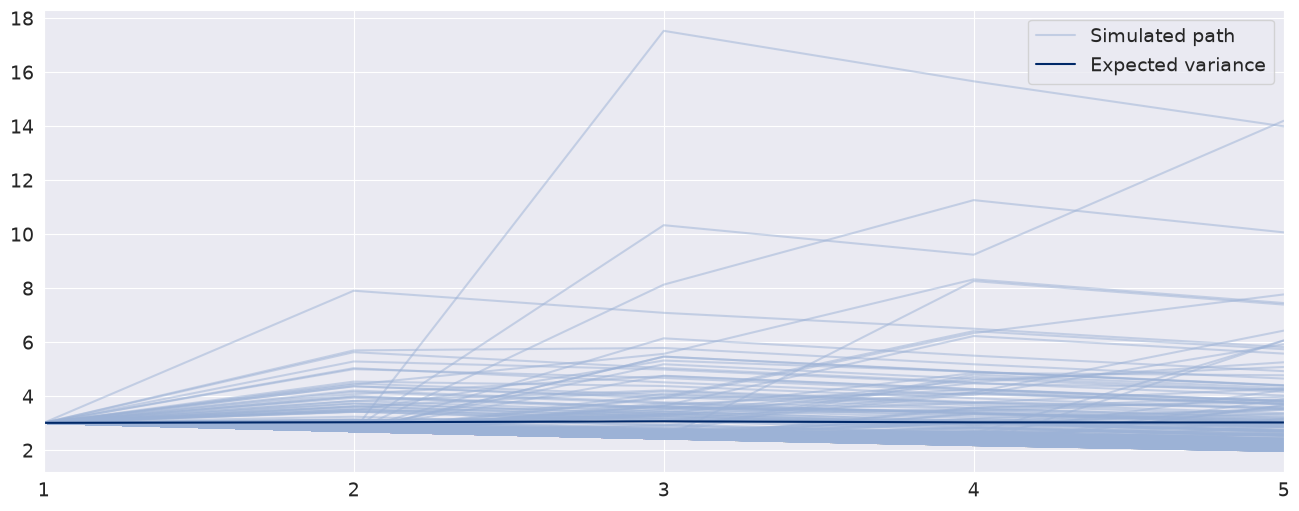

Bootstrap-based forecasts are nearly identical to simulation-based forecasts except that the values used to simulate the process are computed from historical data rather than using the assumed distribution of the residuals. Forecasts produced using this method also return an ARCHModelForecastSimulation containing information about the simulated paths.
[15]:
forecasts = res.forecast(horizon=5, method="bootstrap")
sims = forecasts.simulations
lines = plt.plot(x, sims.residual_variances[-1, ::5].T, color="#9cb2d6", alpha=0.5)
lines[0].set_label("Simulated path")
line = plt.plot(x, forecasts.variance.iloc[-1].values, color="#002868")
line[0].set_label("Expected variance")
plt.gca().set_xticks(x)
plt.gca().set_xlim(1, 5)
legend = plt.legend()
Value-at-Risk Forecasting¶
Value-at-Risk (VaR) forecasts from GARCH models depend on the conditional mean, the conditional volatility and the quantile of the standardized residuals,
where \(q_{\alpha}\) is the \(\alpha\) quantile of the standardized residuals, e.g., 5%.
The quantile can be either computed from the estimated model density or computed using the empirical distribution of the standardized residuals. The example below shows both methods.
[16]:
am = arch_model(returns, vol="garch", p=1, o=0, q=1, dist="skewt")
res = am.fit(disp="off", last_obs="2017-12-31")
Parametric VaR¶
First, we use the model to estimate the VaR. The quantiles can be computed using the ppf method of the distribution attached to the model. The quantiles are printed below.
Note: forecast is called with align="target" so that the forecasts are already aligned with the target and so do not need further shifting.
[17]:
forecasts = res.forecast(align="target")
cond_mean = forecasts.mean["2018":].dropna()
cond_var = forecasts.variance["2018":].dropna()
q = am.distribution.ppf([0.01, 0.05], res.params[-2:])
print(q)
[-2.64487085 -1.64965821]
Next, we plot the two VaRs along with the returns. The returns that violate the VaR forecasts are highlighted.
[18]:
value_at_risk = -cond_mean.values - np.sqrt(cond_var).values * q[None, :]
value_at_risk = pd.DataFrame(value_at_risk, columns=["1%", "5%"], index=cond_var.index)
ax = value_at_risk.plot(legend=False)
xl = ax.set_xlim(value_at_risk.index[0], value_at_risk.index[-1])
rets_2018 = returns["2018":].copy()
rets_2018.name = "S&P 500 Return"
c = []
for idx in value_at_risk.index:
if rets_2018[idx] > -value_at_risk.loc[idx, "5%"]:
c.append("#000000")
elif rets_2018[idx] < -value_at_risk.loc[idx, "1%"]:
c.append("#BB0000")
else:
c.append("#BB00BB")
c = np.array(c, dtype="object")
labels = {
"#BB0000": "1% Exceedence",
"#BB00BB": "5% Exceedence",
"#000000": "No Exceedence",
}
markers = {"#BB0000": "x", "#BB00BB": "s", "#000000": "o"}
for color in np.unique(c):
sel = c == color
ax.scatter(
rets_2018.index[sel],
-rets_2018.loc[sel],
marker=markers[color],
c=c[sel],
label=labels[color],
)
ax.set_title("Parametric VaR")
leg = ax.legend(frameon=False, ncol=3)

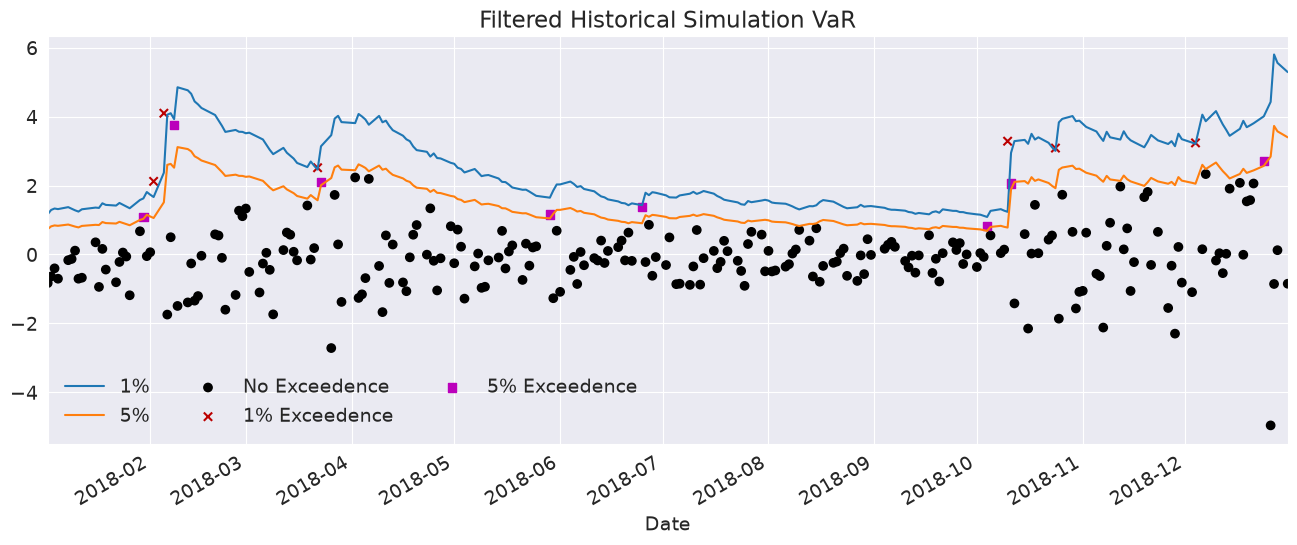

Filtered Historical Simulation¶
Next, we use the empirical distribution of the standardized residuals to estimate the quantiles. These values are very similar to those estimated using the assumed distribution. The plot below is identical except for the slightly different quantiles.
[19]:
std_rets = (returns[:"2017"] - res.params["mu"]) / res.conditional_volatility
std_rets = std_rets.dropna()
q = std_rets.quantile([0.01, 0.05])
print(q)
0.01 -2.668266
0.05 -1.723342
dtype: float64
[20]:
value_at_risk = -cond_mean.values - np.sqrt(cond_var).values * q.values[None, :]
value_at_risk = pd.DataFrame(value_at_risk, columns=["1%", "5%"], index=cond_var.index)
ax = value_at_risk.plot(legend=False)
xl = ax.set_xlim(value_at_risk.index[0], value_at_risk.index[-1])
rets_2018 = returns["2018":].copy()
rets_2018.name = "S&P 500 Return"
c = []
for idx in value_at_risk.index:
if rets_2018[idx] > -value_at_risk.loc[idx, "5%"]:
c.append("#000000")
elif rets_2018[idx] < -value_at_risk.loc[idx, "1%"]:
c.append("#BB0000")
else:
c.append("#BB00BB")
c = np.array(c, dtype="object")
for color in np.unique(c):
sel = c == color
ax.scatter(
rets_2018.index[sel],
-rets_2018.loc[sel],
marker=markers[color],
c=c[sel],
label=labels[color],
)
ax.set_title("Filtered Historical Simulation VaR")
leg = ax.legend(frameon=False, ncol=3)
